Hella 90mm L4060 LED Fog Lamp Module with Cornering Light

Be the first to review this product

Millions of 90 mm module headlights prove their worth daily under tough conditions. Our range currently includes a total of 5 series with an extraordinary number of varieties (Classic, Performance, Premium, L 70 and L4060). The new L4060 LED product group gives designers new degrees of freedom, made possible by a new form of lens (40 x 60 mm) as well as the colored lens openings! Give your vehicle a striking look!

HELLA is currently the only provider that can offer you conversion to LED light technology for all 90 mm single and multifunctional
modules in halogen and xenon.

HL98805 - Pre-mounted Carrier Frame, Left Side (011988051)
HL98806 - Pre-mounted Carrier Frame. Right Side (011988061)

  • The design of this new Foglight is very compact
  • Drive 20 times around the world without needing to replace the bulb.  Bulb replacement has become a thing of the past.
  • No maintenance due to passive cooling.  No moving parts are necessary (e.g. a fan)
  • Low fuel consumption and reduced CO2 emissions due to the low power consumption of max. 20 W on high beam
  • LED headlights improve safety. The light color is similar to daylight, improving vision and ease of driving (drivers do not tire as quickly)
  • Multi-voltage (9-33 V)
  • ECE and SAE type approval, meets SAE J566, FMVSS108, J852, J583
  • Meets Hella Norm N67101 1.2 Car Premium / 3.2 Caravan Premium / 4.1 Bus / 6.1 Truck / 7.2 Agro Plus

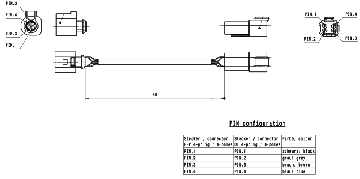

  • Electrical connecttion: 4-Pin FEP plug. Order SM97371.

Features

  • Conversion - Existing halogen versions can be easily converted to LED modules (compatible installation solutions)
  • 90 mm LED upgrade - All lighting functions available with LED technology for maximum design life
  • Design - 40 x 60 mm polycarbonate lenses for varying light distribution
  • Housing - Sturdy die-cast aluminum housing with integrated electronics
  • Resistant to stone chippings - Polycarbonate cover lens
  • Weight saving - Polycarbonate lens
  • Moumting - Pre-mounted Carrier Frame - Provides vertical adjustment only,
  • Silver Design Cover (black available to OEM)
$265.99
Hella

Our Standard of Excellence:

Your Source for all things Hella.

We represent only one brand of a product and endeavor to become expert in that brand.

It is easier to justify a higher cost than it is to apologize for poor quality.

Why Susquehanna:

We endeavor to educate the customer so an informed decision may be made.

Our inventory is extensive, but if we don't have it, we will get it for you.

We are not just a sales organization. Every one of us is an auto enthusiast and is active in motor sports.

As viewed from the driver's seat

* Required Fields

$265.99

Description

Details

Millions of 90 mm module headlights prove their worth daily under tough conditions. Our range currently includes a total of 5 series with an extraordinary number of varieties (Classic, Performance, Premium, L 70 and L4060). The new L4060 LED product group gives designers new degrees of freedom, made possible by a new form of lens (40 x 60 mm) as well as the colored lens openings! Give your vehicle a striking look!

HELLA is currently the only provider that can offer you conversion to LED light technology for all 90 mm single and multifunctional
modules in halogen and xenon.

HL98805 - Pre-mounted Carrier Frame, Left Side (011988051)
HL98806 - Pre-mounted Carrier Frame. Right Side (011988061)

  • The design of this new Foglight is very compact
  • Drive 20 times around the world without needing to replace the bulb.  Bulb replacement has become a thing of the past.
  • No maintenance due to passive cooling.  No moving parts are necessary (e.g. a fan)
  • Low fuel consumption and reduced CO2 emissions due to the low power consumption of max. 20 W on high beam
  • LED headlights improve safety. The light color is similar to daylight, improving vision and ease of driving (drivers do not tire as quickly)
  • Multi-voltage (9-33 V)
  • ECE and SAE type approval, meets SAE J566, FMVSS108, J852, J583
  • Meets Hella Norm N67101 1.2 Car Premium / 3.2 Caravan Premium / 4.1 Bus / 6.1 Truck / 7.2 Agro Plus
  • Electrical connecttion: 4-Pin FEP plug. Order SM97371.

Features

  • Conversion - Existing halogen versions can be easily converted to LED modules (compatible installation solutions)
  • 90 mm LED upgrade - All lighting functions available with LED technology for maximum design life
  • Design - 40 x 60 mm polycarbonate lenses for varying light distribution
  • Housing - Sturdy die-cast aluminum housing with integrated electronics
  • Resistant to stone chippings - Polycarbonate cover lens
  • Weight saving - Polycarbonate lens
  • Moumting - Pre-mounted Carrier Frame - Provides vertical adjustment only,
  • Silver Design Cover (black available to OEM)

Additional Info

Additional Info

Model90mm Module
Lamp FeaturesLED, Module, Valence Mount
Beam ShapeFog Beam, Cornering/Flood Beam, Signal/Position
Width 4.50
Diameter/Height4.50
ShapeRound
